application

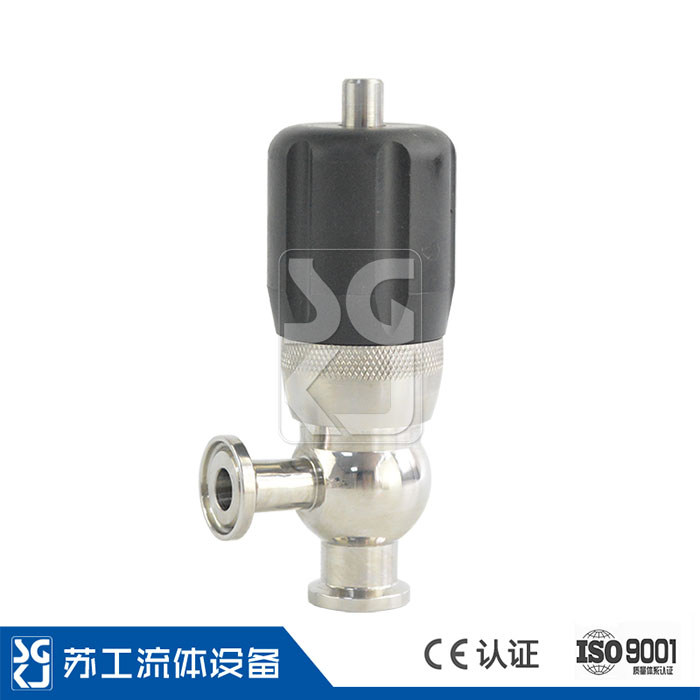

   This safety valve is widely used in food, brewing, beverage, dairy products, toothpaste cosmetics, bio-pharmaceutical and other industries.

Technical Parameters

◆Specification: 1/2" DN10

◆Connection method: welding, clamp

◆Maximum working pressure: ≤8bar

◆Working temperature: -10 ° C to 120 ° C

◆Contact with material: SS304/SS316L

◆Internal surface contact product: Ra≤0.8μm

◆Sealing: EPDM, Silicone Rubber (SI)

working principle

This safety valve is a sterile diaphragm seal design based on medium pressure self-control valve. The specific pressure is set by adjusting the adjusting cover compression spring and the lock nut. The calibration pressure is the maximum safe pressure value set to avoid damage to the pipeline equipment. When the pipeline pressure is greater than the safety valve calibration pressure, the valve seat automatically springs. As a result, the pressure in the piping system is released to protect the piping and equipment.
