application

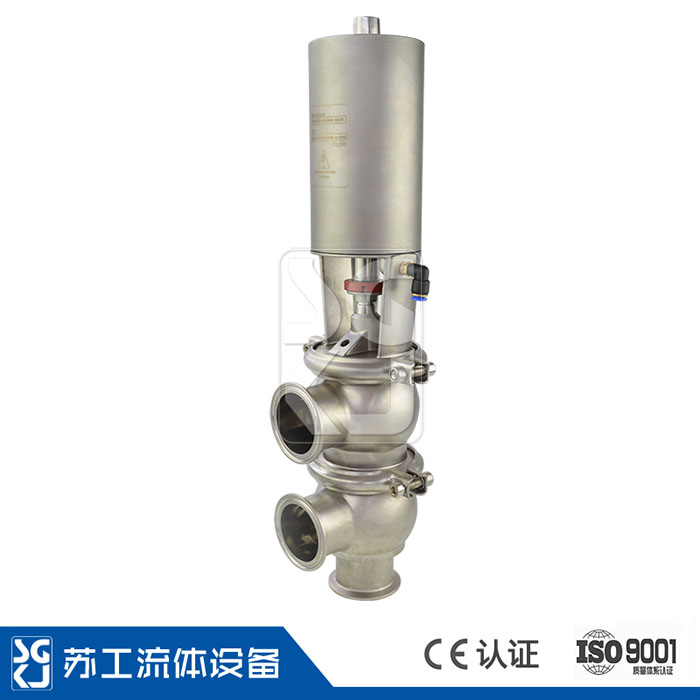

  This type of reversing valve is used in the material flow switching of equipment pipelines, and is widely used in food, brewing, beverage, dairy products, toothpaste cosmetics, bio-pharmaceutical and other industries.

Technical Parameters

◆Specifications: 1"~4" DN25~DN100

◆Connection method: welding, clamp, thread, flange

◆Maximum working pressure: ≤10bar

◆ Supply compressed air: 4-8bar

◆Compressed air connection: air pipe joint G1/8"

◆Working temperature: -10 ° C to 120 ° C

◆Contact with material: SS304/SS316L

◆Internal surface contact product: Ra≤0.8μm

◆Sealing: EPDM, Silicone Rubber (SI), Fluororubber (FPM)

working principle

This model uses compressed air to push the piston in the pneumatic actuator up. The piston rod and the valve stem are connected by a positioning card. At the same time, when the air compression pushes the piston in the pneumatic actuator up, the valve stem is moved upwards to make the valve move. The upper sealing surface is pressed against the upper sealing surface of the valve body, that is, the upper valve port is closed. When the air compression is lower than the spring force or no gas compression, the piston is pushed by the spring under the action of the spring, and the valve stem is moved downward to close the lower valve port. It is mainly used for fluid switching in the pipeline system, and is switched in one way and two ways, and is applied to the piping system without pollution or mixing.
